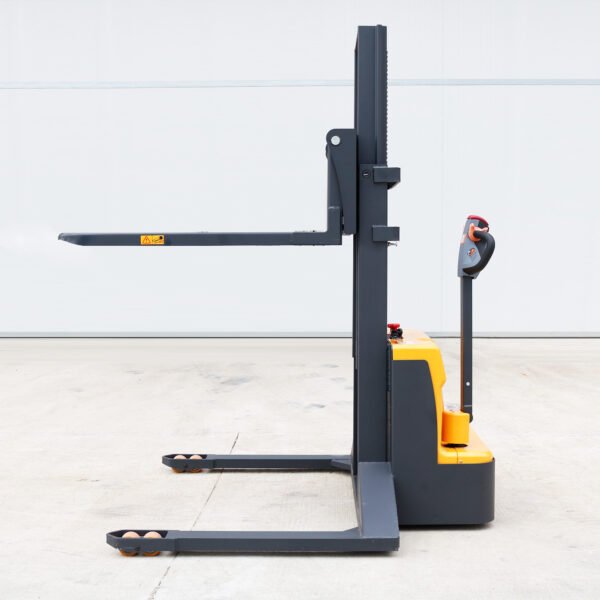

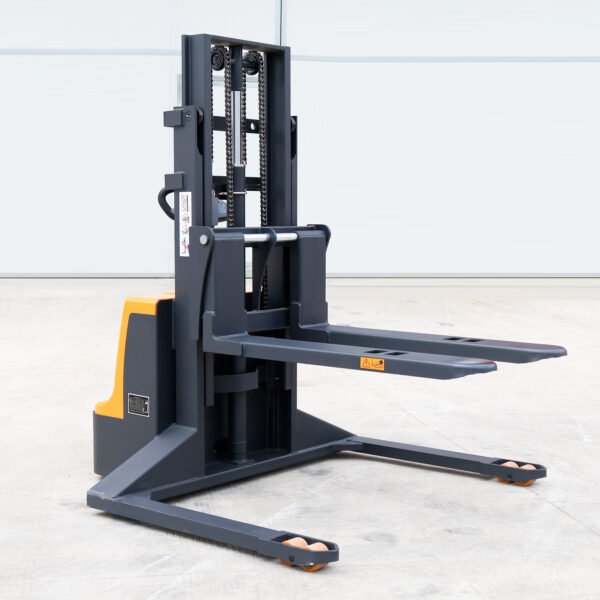

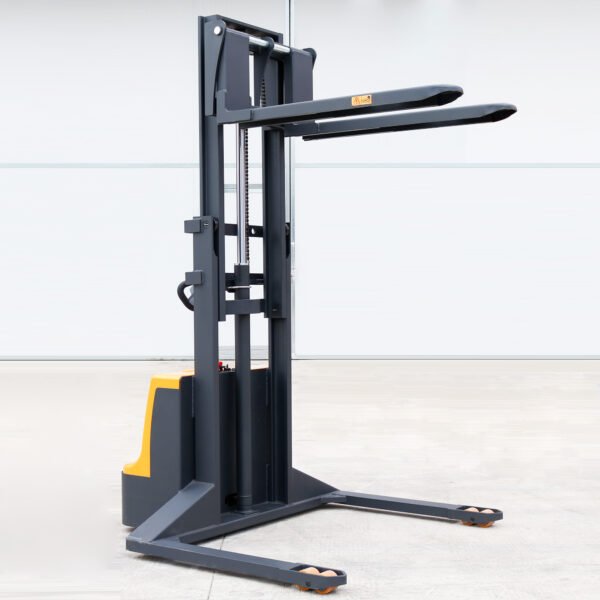

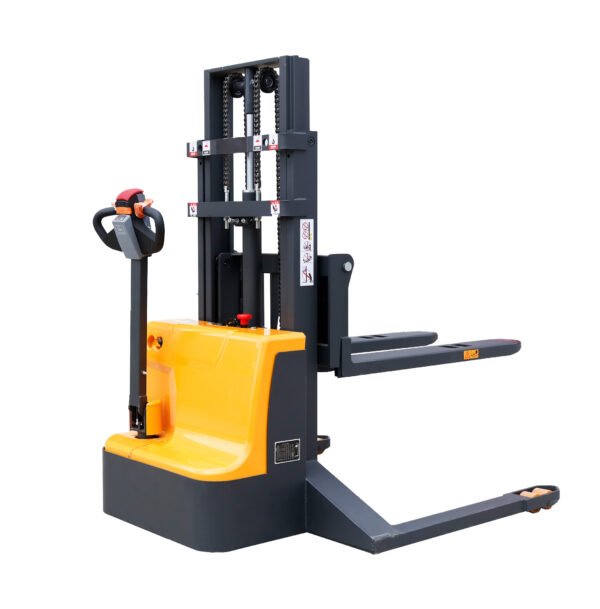

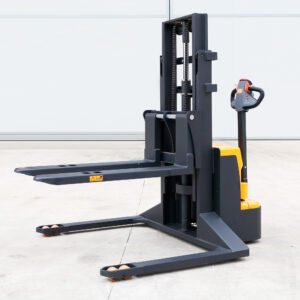

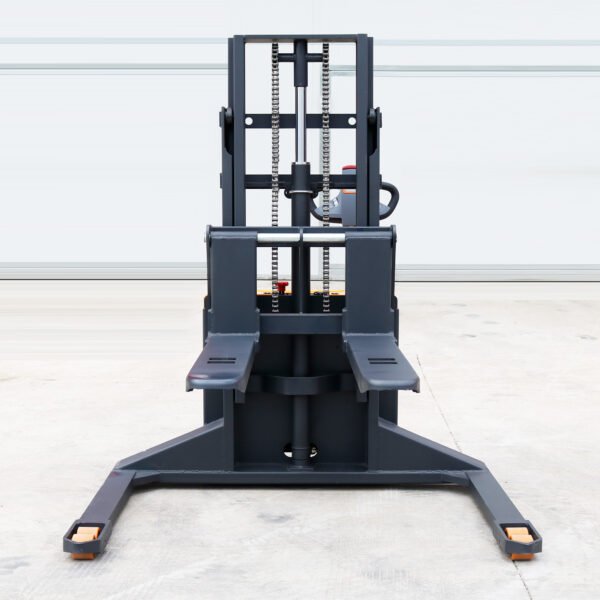

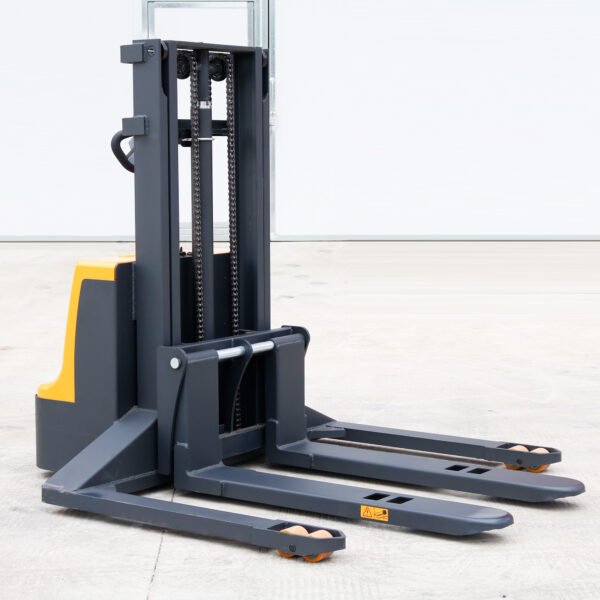

Electric Pallet Stacker WES-A1.5T
$2,300.00
- High Load Capacity and Reach: –3300lb, handles heavy loads with ease, ensuring efficient material handling. Lifting height- 138 inches (3500mm) : Ideal for high stacking requirements in warehouses and factories.

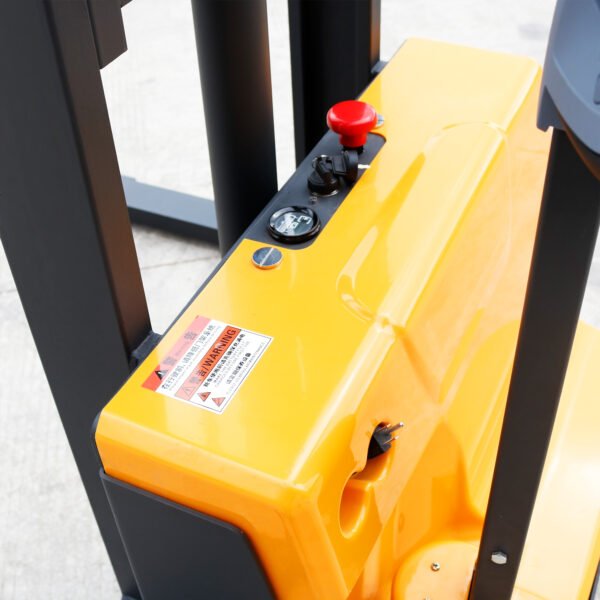

- Advanced Safety Features: Protective emergency reverse device and emergency brake switch.
- Forks made of high strength 8mm steel to be sturdy and durable.
- 2 sets of 12V85Ah battery
- DC1000W horizontal driving motor
| Max. load capacity | 3300 lbs |
| Max. lifting height | 138 inches 3500mm |
| Net weight (with battery) just for reference | 992 lbs |
| Wheel material | PU |
| Min. height of fork | 3.5 inches /90mm |
| Fork dimensions | 2.36" / 6.50" / 45.28" 60/165/1150 mm |
| Fork outside width | 13.00– 26.77 inches 330-680 mm |
| Turning radius | 60 inches 1520 mm |
| Max driving speed (load/unload) | 2.61 / 2.80 mph 4.2/4.5 km/h |
| Braking | Electromagnetic |
| Driving motor | 24V/1.0KW |
| Lifting motor | 24V/2.2KW |
| Number of batteries | 2 pcs |
| Battery | 24V/85Ah |
| Charger | 24V/12Ah |
Related Products

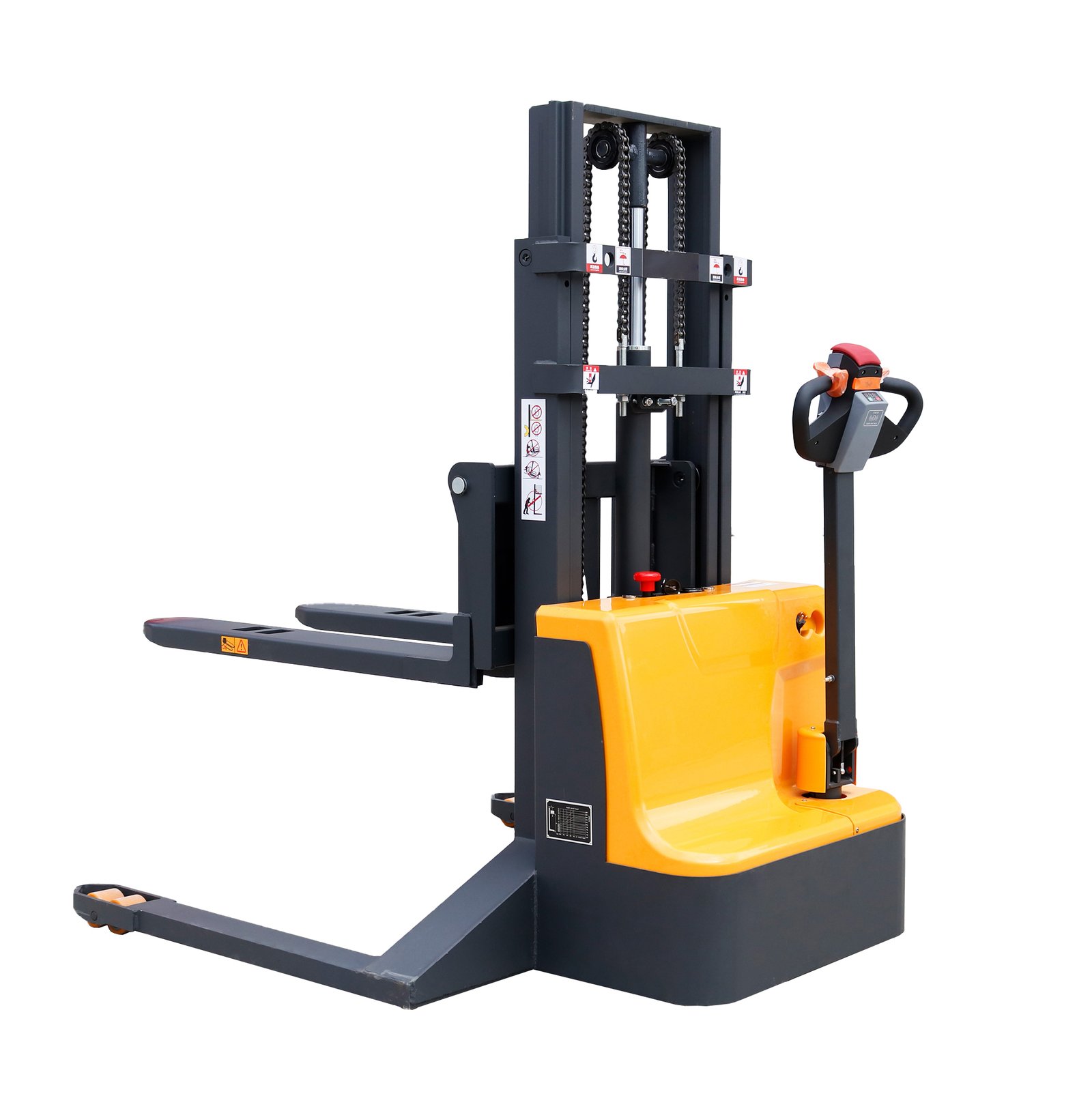

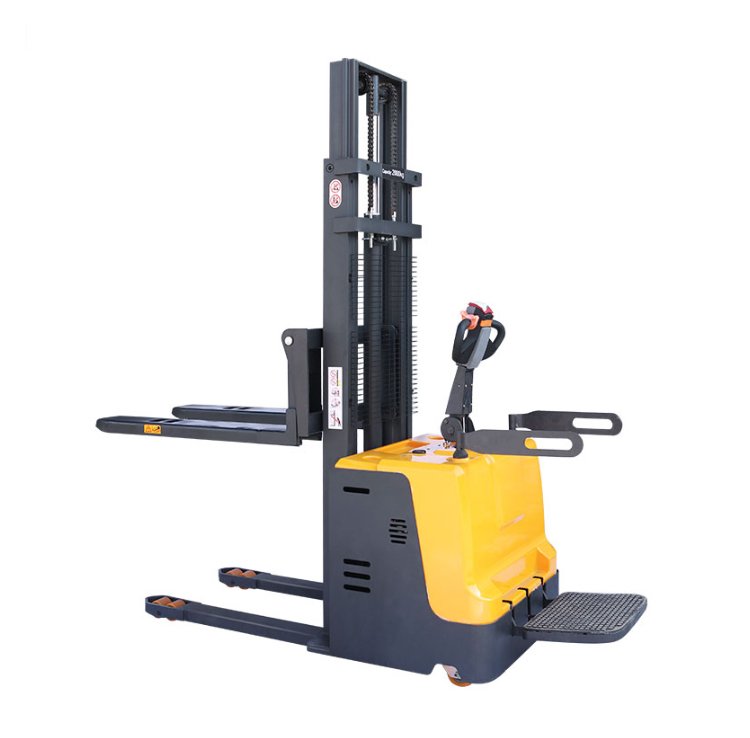

Electric Pallet Stacker WES-A2T
